PU400×125 PU500×170 PU600×210 Metal Sheet Piling PZ22 PZ27 Steel Sheet Pile

Product Categories
Shandong Hongteng Fengda Metal Material Co, Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PU400×125 PU500×170 PU600×210 Metal Sheet Piling PZ22 PZ27 Steel Sheet Pile

  • 1
  • 2
  • 3

Brand Name : HTFD

Model Number : PU400×125 PU500×170 PU600×210 PU 8 PU 12 PU 32 FSP-Ⅲ FSP-Ⅳ PZ22 PZ27

Certification : CE ISO CNAS CQC

Place of Origin : China

MOQ : 1Ton

Price : USD 1800-2300 per ton

Payment Terms : T/T,L/C

Supply Ability : 50000Tons/Month

Delivery Time : 7-15 working days

Packaging Details : Standard Export Package

Model NO. : Steel Sheet Piles

Application : Structural Steel Bar

Price Term : FOB EXW CIF

Shape : U

Transport Package : Standard Sea Freight Packing or Customized

Special Use : Cutting Tools, Measuring Tools

Contact Now

PU400×125 PU500×170 PU600×210 PU 8 PU 12 PU 32 FSP-Ⅲ FSP-Ⅳ PZ22 PZ27 Steel Sheet Pile

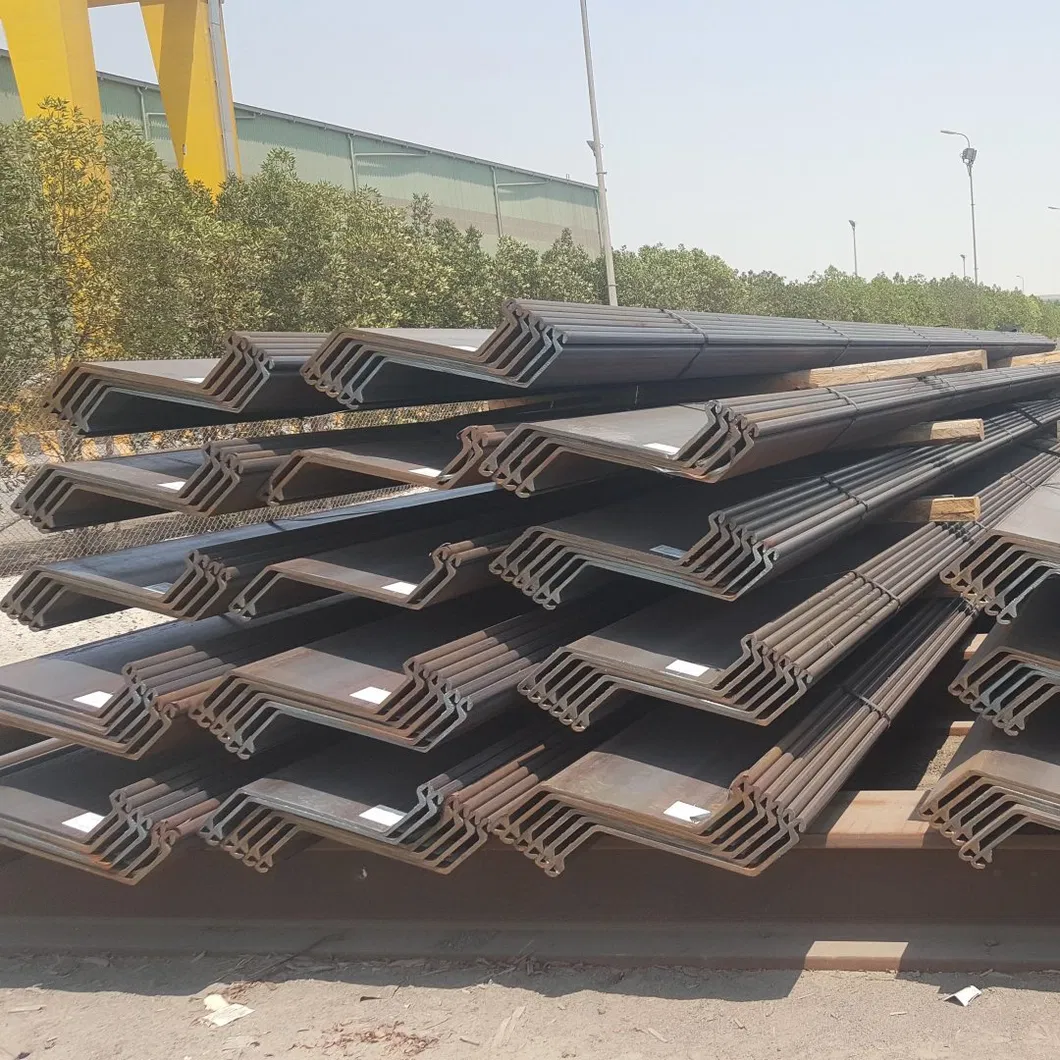

Sheet piles are vertical walls formed by locking connections to
simultaneously maintainearth pressure, water pressure, or both at the same time.

Zhuosheng Steel has supplied more than 10,000 tons of various types of steel sheet piles to overseas customers,
of which about 8,000 tons are used for permanent buildings (such as shipyards, wharves, retaining walls, ship locks,
slipways, pump locks, etc.) Temporary works for engineering projects (such as temporary construction cofferdams, tunnels
and foundation supports, etc.).

PU400×125 PU500×170 PU600×210 Metal Sheet Piling PZ22 PZ27 Steel Sheet Pile
advantage:
- Very easy to lift, transport and install.

- Wide entry depth, thick flange and good static performance.

- Symmetrical structure, very easy to reuse.

- Can be pre-assembled into "pile groups" in the factory, greatly improving the efficiency of pile driving.

- Very easy to install ties and accessories, even underwater.

- The thickest part is in the outermost layer of the wall (hot rolled) for good corrosion resistance

U type steel sheet piles

Size Per piece
Specification Width
(mm)		 High
(mm)		 Thick
(mm)		 Section area
(cm2)		 Weight
(kg/m)
400 x 85 400 85 8.0 45.21 35.5
400 x 100 400 100 10.5 61.18 48.0
400 x 125 400 125 13.0 76.42 60.0
400 x 150 400 150 13.1 74.40 58.4
400 x 170 400 170 15.5 96.99 76.1
600 x 130 600 130 10.3 78.7 61.8
600 x 180 600 180 13.4 103.9 81.6
600 x 210 600 210 18.0 135.3 106.2
750 x 205 750 204 10.0 99.2 77.9
750 205.5 11.5 109.9 86.3
750 206 12.0 113.4 89.0

Z type steel sheet piles:

Specification Width
(mm)		 High
(mm)		 Thick t
(mm)		 Thick s
(mm)		 Weight
(kg/m)
SPZ12 700 314 8.5 8.5 67.7
SPZ13 700 315 9.5 9.5 74
SPZ14 700 316 10.5 10.5 80.3
SPZ17 700 420 8.5 8.5 73.1
SPZ18 700 418 9.10 9.10 76.9
SPZ19 700 421 9.5 9.5 80.0
SPZ20 700 421 10.0 10.0 83.5
SPZ24 700 459 11.2 11.2 95.7
SPZ26 700 459 12.3 12.3 103.3
SPZ28 700 461 13.2 13.2 110.0
SPZ36 700 499 15.0 11.2 118.6
SPZ38 700 500 16.0 12.2 126.4
SPZ25 630 426 12.0 11.2 91.5
SPZ48 580 481 19.1 15.1 140.2

PU400×125 PU500×170 PU600×210 Metal Sheet Piling PZ22 PZ27 Steel Sheet Pile
